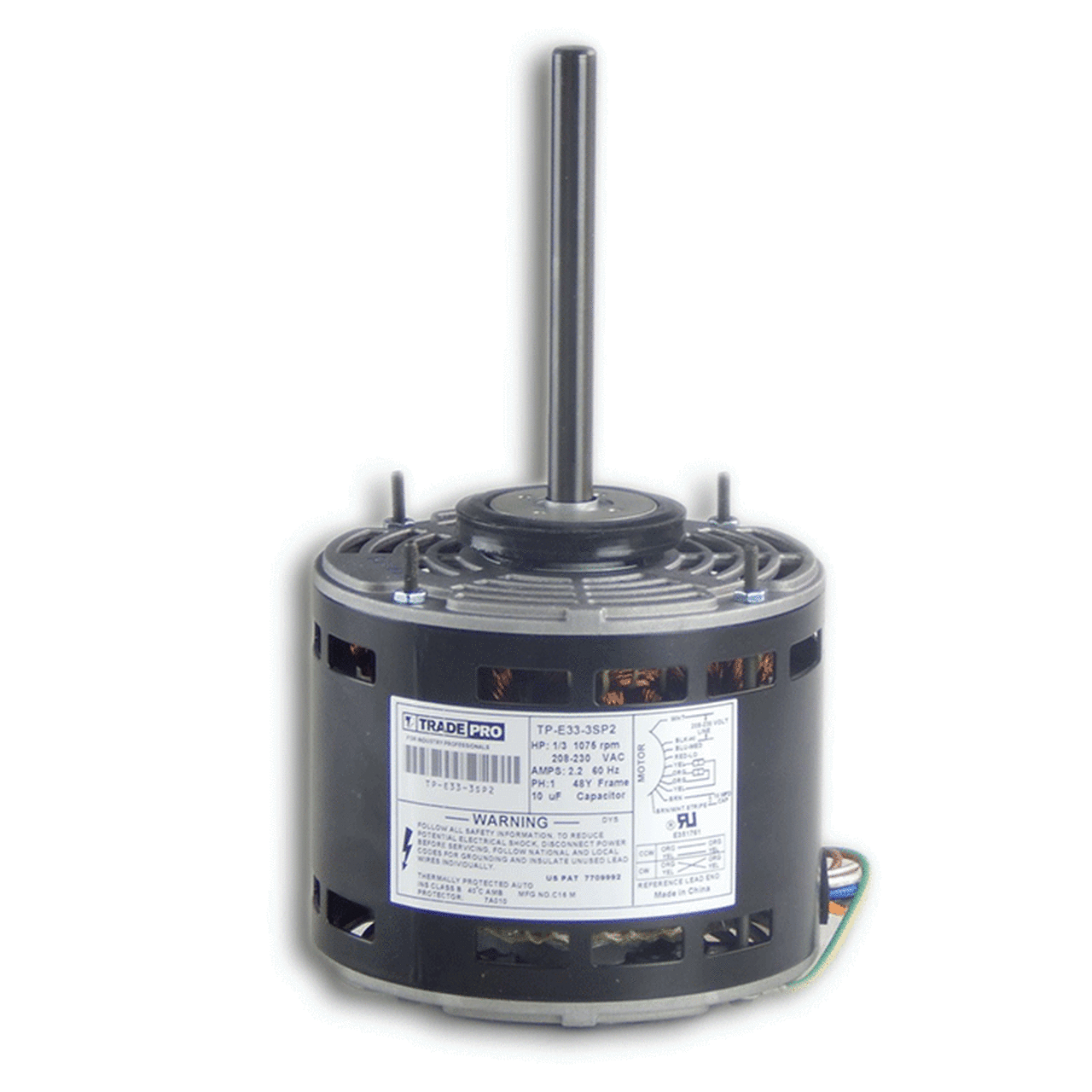

Carrier 1/3 HP 208/230V 1075RPM Direct Drive Blower Motor TP-E33-3SP2

  • Carrier-13-HP-208230V-1075RPM-Direct-Drive-Blower-Motor-TP-E33-3SP2.png
Price:
$190.00
SKU:
TP-E33-3SP2
Brand:
Weight:
18.100 LBS
Availability:
In Stock
Shipping:
Calculated at checkout
Quantity:


Product Description

Carrier 1/3 HP 208/230V 1075RPM Direct Drive Blower Motor TP-E33-3SP2



Carrier 1/3 HP 208/230V 1075RPM Direct Drive Blower Motor TP-E33-3SP2 is available for shipment anywhere in Canada. This replacement parts has the exact dimension for easy installation. It pass the standard as replacement parts for optimum system performanace. Purchase it now to keep your unit running. If you are not sure whether this parts fits your unit,  contact us  with your model and serial number.

Specifications:

Weight 18.1 Pounds (lbs)
Width 5.625 Inches (In)
Height 5.625 Inches (In)
Country of Origin MEX
Length 5.652 Inches (In)
Amps 2.2
Bearing Type Self Aligning (SAB)
Capacitor MFD µF 10
Cycle/Hertz 60 Hz
Duty Continuous
Enclosure Open Air Over (OPAO)
Full Load Amps 2.2
Insulation Class Class B
Lead Length 36"
Motor HP 1/3 HP
Motor Type PSC
NEMA Frame 48Y
Number of Bearings 2
Number of Poles 6
Number of Speeds Three
Phase Single
Prop 65 No
Protection Automatic
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 1/2"
Shaft Length 5"
Thermal Protection Yes
Voltage 208-230 VAC
Warranty Offered Yes
