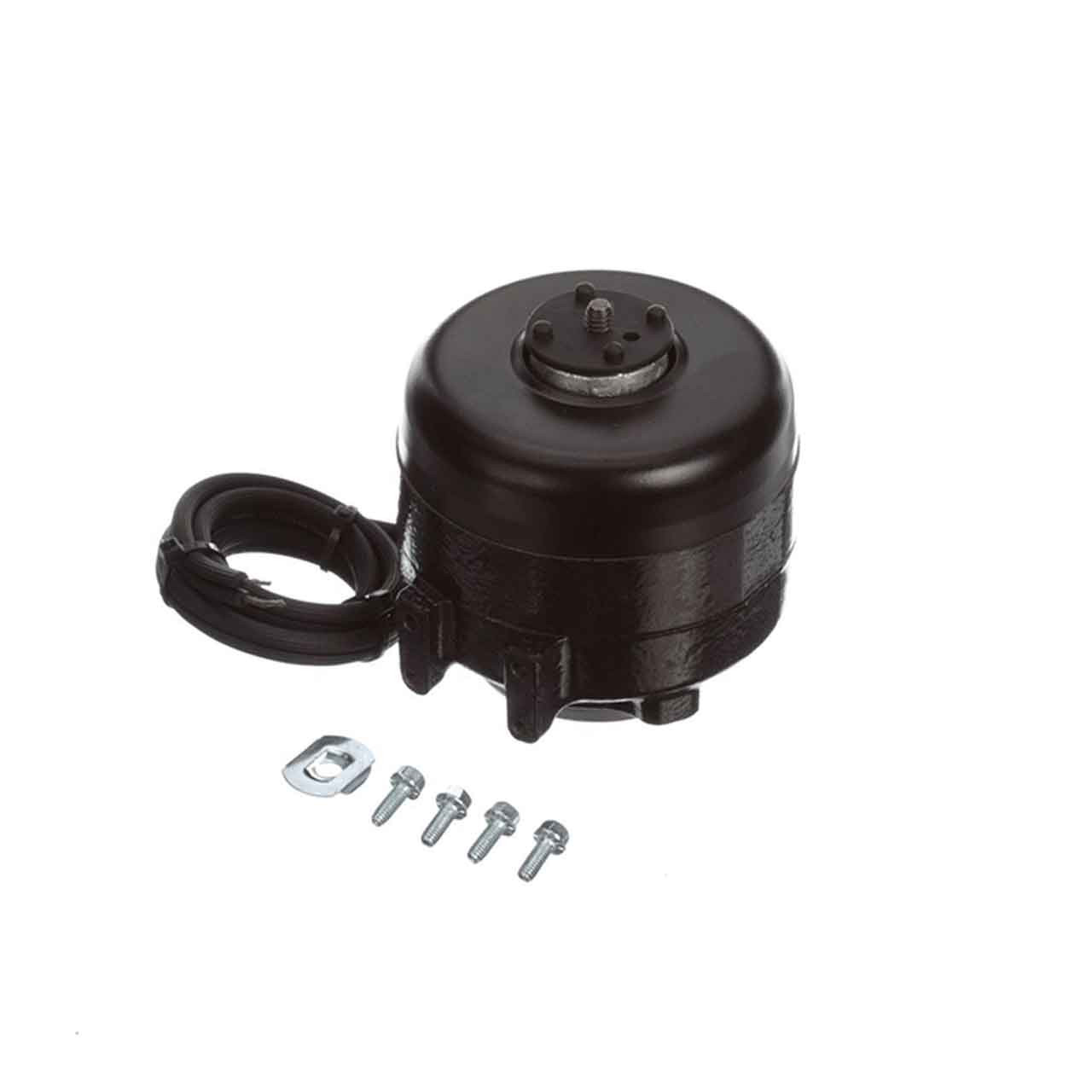

Carrier 230V 1550 RPM Unit Bearing Refrigeration Fan Motor UB568
)
Price:
$61.16
SKU:
UB568
Brand:
Weight:
3.550 LBS
Availability:
In Stock
Shipping:
Calculated at checkout
Product Description
Carrier - UB568 230V 1550 RPM Unit Bearing Refrigeration Fan Motor
Carrier-UB568 Fan motor has 1550RPM fan load of 230V aplication and 16watts of power Clockwise rotation. This unit bearing motor features a totally enclosed air-over enclosure design. It can operate with shaft orientation at any angle. Use in commercial and industrial HVAC and refrigeration equipment, and other applications with applicable fan blades. If you are not sure whether this replacement motorfits your unit, contact us with your model and serial number.
Specifications:
| Weight | 3.542 Pounds (lbs) |
| Width | 3.45 Inches (In) |
| Height | 3.87 Inches (In) |
| Country of Origin | CHN |
| Length | 3.25 Inches (In) |
| Amps | 0.4 |
| Bearing Type | Sleeve |
| Cycle/Hertz | 60 Hz |
| Duty | Continuous |
| Enclosure | Totally Enclosed Air Over (TEAO) |
| Full Load Amps | 0.4 |
| Insulation Class | Class A |
| Lead Length | 25" |
| Motor Type | Shaded Pole |
| NEMA Frame | UNIT BEARING |
| Number of Bearings | 1 |
| Number of Poles | 4 |
| Number of Speeds | One |
| Phase | Single |
| Prop 65 | No |
| Protection | Thermally Protection |
| Rotation | Clockwise |
| RPM | 1550 |
| Shaft Diameter | 0.25" |
| Shaft Length | 0.375" |
| Voltage | 230 VAC |
| Warranty Offered | Yes |
| Watts | 16 |
