Carrier 1725RPM 115V Belted Fan and Blower Motor 841CV
)
Price:
$269.50
SKU:
841CV
Brand:
Weight:
18.000 LBS
Availability:
In Stock
Shipping:
Calculated at checkout
Product Description

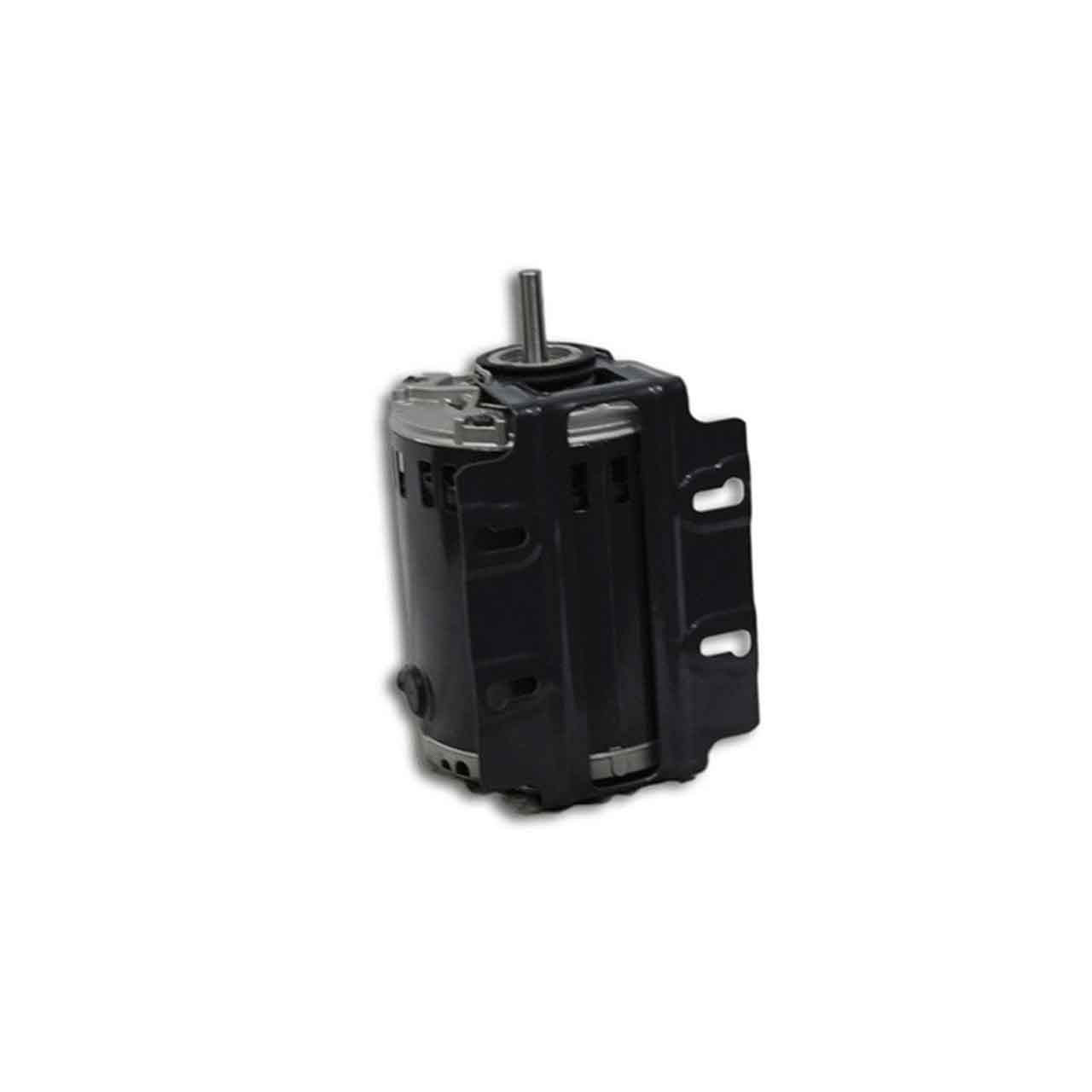

Carrier 841CV 1/3HP 1725 RPM 115V Belted Fan and Blower Motor
Carrier 841CV 1 Speed Reversible Rotation belted fan and drive blower motor. The one speed reversible rotation Wizard 1725 RPM will run at fan load 1/3HP. This increases the efficiency and creates a quiet and highly dynamic operation. It is capable of running continuously for an extended period of time without overheating. If you are not sure whether this replacement kit fits your unit, contact us with your model and serial number.
Features:
- One Speed Reversible Rotation
- Continuous Duty
- Single Phase 60Hz
- Belt drive motor
Specifications:
| Weight | 18 Pounds (lbs) |
| Width | 8.625 Inches (In) |
| Height | 8.625 Inches (In) |
| Country of Origin | MEX |
| Length | 12.5 Inches (In) |
| Amps | 6.4 |
| Bearing Type | Ball |
| Cycle/Hertz | 60 Hz |
| Enclosure | Open Drip Proof (ODP) |
| Motor HP | 1/3 HP |
| Motor Type | Belt Drive |
| NEMA Frame | 48 |
| Number of Speeds | One |
| Phase | Single |
| Prop 65 | Yes |
| Rotation | Reversible |
| RPM | 1725 |
| Shaft Diameter | 1/2" |
| Shaft Length | 1 3/5" |
| Voltage | 115 VAC |
| Warranty Offered | Yes |
Warning: this product contains a chemical known to the State of California to cause cancer.P65Warnings.ca.gov
